DVR Video from Images Captured from IP Cameras
Working with thousands of image files captured from IP Cameras can be problematic. I’ve experienced issues with Caja hanging when simply browsing the folders that contain the captured images. To work around this, I compile video with FFMpeg from the image stock into a separate folder.
First I’ll create a file list using this command
ls /home/local/Videos/Security/IPCam3_20180726*.jpg > /home/local/Scripts/IPCam3_20180726.txt
The results will then need to be processed so FFMpeg can use the file as a reference.
Before – Not ready for use as a reference
/home/local/Videos/Security/IPCam3_20180726235704.jpg /home/local/Videos/Security/IPCam3_20180726235710.jpg
After – Now FFMpeg can reference this
file '/home/local/Videos/Security/IPCam3_20180726235716.jpg' file '/home/local/Videos/Security/IPCam3_20180726235722.jpg'
Here are the commands I use to fix the reference file.
sed "s/\/home\/local\/Videos\/Security\/IPCam3/file \'\/home\/local\/Videos\/Security\/IPCam3/" /home/local/Scripts/IPCam3_20180726.txt > /home/local/Scripts/IPCam3_20180726_Pre.txt sed "s/jpg/jpg\'/" /home/local/Scripts/IPCam3_20180726_Pre.txt > /home/local/Scripts/IPCam3_20180726_Process.txt rm /home/local/Scripts/IPCam3_20180726.txt rm /home/local/Scripts/IPCam3_20180726_Pre.txt
Now with the reference file formatted correctly, I’ll issue my FFMpeg command to compile the images into a video
ffmpeg -y -r 30 -f concat -safe 0 -i "/home/local/Scripts/IPCam3_20180726_Process.txt" -c:v libx264 -vf "fps=30,format=yuv420p" "/home/local/Scripts/IPCam3_20180726.mp4"
I’m greeted with this error
[concat @ 0x1ed93e0] Impossible to open '/home/local/Videos/Security/IPCam3_20180726050442.jpg' /home/local/Scripts/IPCam3_20180726_Process.txt: Invalid data found when processing input
It turns out that some of my image files are empty due to the IP camera being offline. So to fix this, I’ll run this command to remove empty image files.
find /home/local/Videos/Security/ -size 0 -delete
Then I repeat my commands from earlier
ls /home/local/Videos/Security/IPCam3_20180726*.jpg > /home/local/Scripts/IPCam3_20180726.txt sed "s/\/home\/local\/Videos\/Security\/IPCam3/file \'\/home\/local\/Videos\/Security\/IPCam3/" /home/local/Scripts/IPCam3_20180726.txt > /home/local/Scripts/IPCam3_20180726_Pre.txt sed "s/jpg/jpg\'/" /home/local/Scripts/IPCam3_20180726_Pre.txt > /home/local/Scripts/IPCam3_20180726_Process.txt rm /home/local/Scripts/IPCam3_20180726.txt rm /home/local/Scripts/IPCam3_20180726_Pre.txt ffmpeg -y -r 30 -f concat -safe 0 -i "/home/local/Scripts/IPCam3_20180726_Process.txt" -c:v libx264 -vf "fps=30,format=yuv420p" "/home/local/Scripts/IPCam3_20180726.mp4"
It starts to churn through all the images, creating the video. The processing took 5 minutes to create the 5 minute video.
Now I’ll run the commands for IP Camera 2
ls /home/local/Videos/Security/IPCam2_20180726*.jpg > /home/local/Scripts/IPCam2_20180726.txt sed "s/\/home\/local\/Videos\/Security\/IPCam2/file \'\/home\/local\/Videos\/Security\/IPCam2/" /home/local/Scripts/IPCam2_20180726.txt > /home/local/Scripts/IPCam2_20180726_Pre.txt sed "s/jpg/jpg\'/" /home/local/Scripts/IPCam2_20180726_Pre.txt > /home/local/Scripts/IPCam2_20180726_Process.txt rm /home/local/Scripts/IPCam2_20180726.txt rm /home/local/Scripts/IPCam2_20180726_Pre.txt ffmpeg -y -r 30 -f concat -safe 0 -i "/home/local/Scripts/IPCam2_20180726_Process.txt" -c:v libx264 -vf "fps=30,format=yuv420p" "/home/local/Scripts/IPCam2_20180726.mp4"

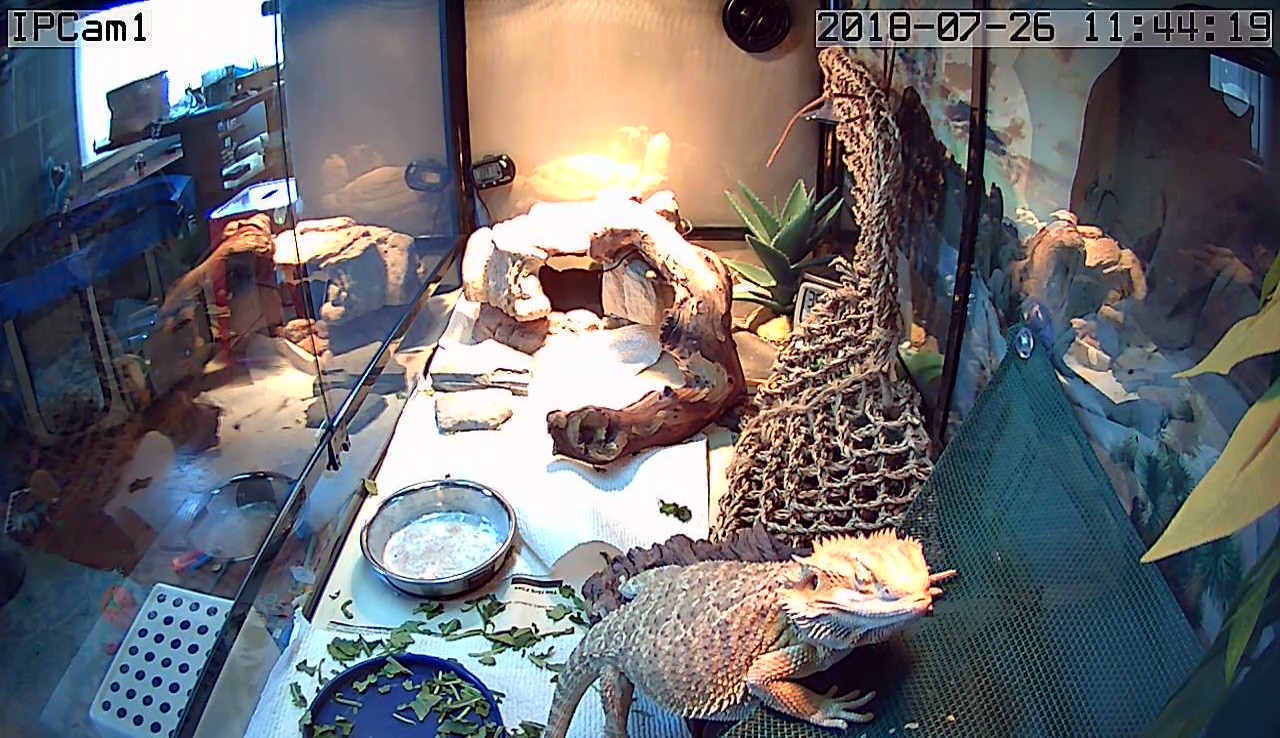

…and IP Camera 1
ls /home/local/Videos/Security/IPCam1_20180726*.jpg > /home/local/Scripts/IPCam1_20180726.txt sed "s/\/home\/local\/Videos\/Security\/IPCam1/file \'\/home\/local\/Videos\/Security\/IPCam1/" /home/local/Scripts/IPCam1_20180726.txt > /home/local/Scripts/IPCam1_20180726_Pre.txt sed "s/jpg/jpg\'/" /home/local/Scripts/IPCam1_20180726_Pre.txt > /home/local/Scripts/IPCam1_20180726_Process.txt rm /home/local/Scripts/IPCam1_20180726.txt rm /home/local/Scripts/IPCam1_20180726_Pre.txt ffmpeg -y -r 30 -f concat -safe 0 -i "/home/local/Scripts/IPCam1_20180726_Process.txt" -c:v libx264 -vf "fps=30,format=yuv420p" "/home/local/Scripts/IPCam1_20180726.mp4"
Now I can purge the image files, since they are now compiled into a video. This command should do perform the house cleaning function.
rm /home/local/Videos/Security/IPCam1_20180726*.jpg rm /home/local/Videos/Security/IPCam2_20180726*.jpg rm /home/local/Videos/Security/IPCam3_20180726*.jpg
This can be setup so I can enter in when and what camera I’d like to process. Here is the code I used to handle all of the functions.
#!/bin/bash # cloudacm.com # a shell script used to process images from ip cameras. # this is executed manually and will prompt for when and what to process. echo What camera would you like to process? echo IPCam1 = 1 echo IPCam2 = 2 echo IPCam3 = 3 read cNum echo What period of time would you like to process? echo YYYYMMDD read dNum find /home/local/Videos/Security/ -size 0 -delete ls /home/local/Videos/Security/IPCam"$cNum"_"$dNum"*.jpg > /home/local/Scripts/IPCam"$cNum"_"$dNum".txt sed "s/\/home\/local\/Videos\/Security\/IPCam"$cNum"/file \'\/home\/local\/Videos\/Security\/IPCam"$cNum"/" /home/local/Scripts/IPCam"$cNum"_"$dNum".txt > /home/local/Scripts/IPCam"$cNum"_"$dNum"_Pre.txt sed "s/jpg/jpg\'/" /home/local/Scripts/IPCam"$cNum"_"$dNum"_Pre.txt > /home/local/Scripts/IPCam"$cNum"_"$dNum"_Process.txt rm /home/local/Scripts/IPCam"$cNum"_"$dNum".txt rm /home/local/Scripts/IPCam"$cNum"_"$dNum"_Pre.txt ffmpeg -y -r 30 -f concat -safe 0 -i "/home/local/Scripts/IPCam"$cNum"_"$dNum"_Process.txt" -c:v libx264 -vf "fps=30,format=yuv420p" "/home/local/Scripts/IPCam"$cNum"_"$dNum".mp4" rm /home/local/Videos/Security/IPCam"$cNum"_"$dNum"*.jpg rm /home/local/Scripts/IPCam"$cNum"_"$dNum"_Process.txt
The process can be fully automated. However, the resulting videos have a higher percentage of non activity in them. Reviewing these videos would require more time than is worth the effort. I’ll cover that in another post. I hope you have enjoyed this topic and look forward to having you back.
